The United States is projected to have 4.6 GW of large-scale battery energy storage capacity by 2023. With various grid benefits and decreasing costs, the battery energy storage market will likely see continued growth in coming decades.
[/well]
What's Driving Market Growth?
[section separator="true"]
[section-item 12]
[row]
[column 12][/column]
[/row]
[row]
[column 12]
Battery energy storage costs are decreasing, especially within the last decade.
The operating capacity of battery energy systems continues to increase annually across the U.S.
Lithium-ion chemistry batteries make up the majority of large-scale battery energy storage systems.
[/column]
[/row]
[row]
[column 12][/column]
[/row]
[row]
[column 6]

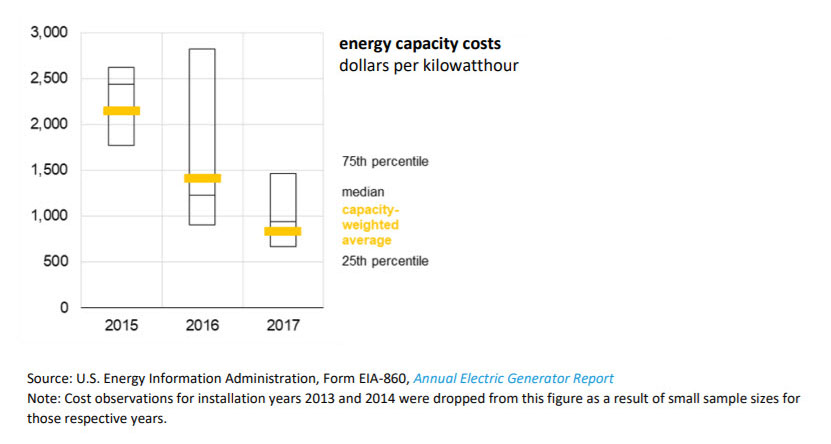

Total installed cost of large-scale battery storage systems by year
[/column]
[column 6]

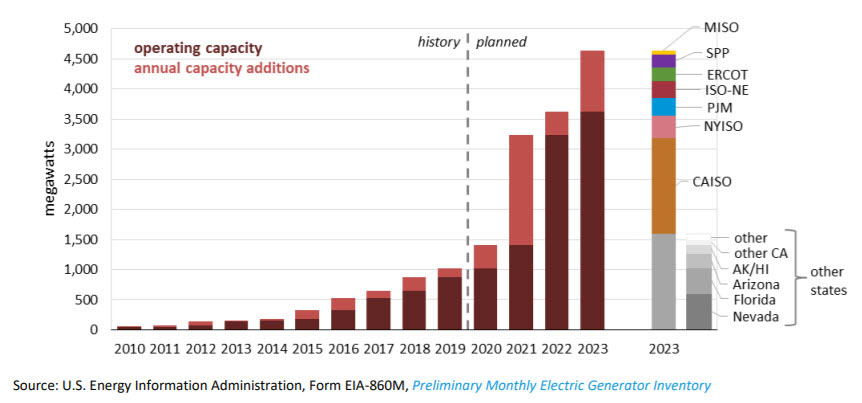

Large-scale battery storage cumulative power capacity (2010-2023)
[/column]
[/row]
[/section-item]
[/section]
[accordions]
[accordion title="More%20Detail"]
Large-scale battery energy storage in the U.S. has grown 2 GW in operational power capacity in the last decade. Several factors have allowed the battery energy storage market to grow, including decreasing costs and improvement in technology. The median energy capacity costs for large-scale batteries was roughly $2,150/kWh in 2015 and decreased by 61% in 2017 to a median of about $800/kWh. While each technology has its strengths and weaknesses, lithium-ion makes up the majority of utility-scale battery systems in the U.S. due of cost declines and a high energy density. Both lithium-ion and flow battery technologies are projected to see significant cost declines in the coming years. New battery technologies are also being developed, such as the iron-air-exchange battery that could potentially provide long-duration energy storage for less than $20/kWh. These cost declines coupled with policy incentives will drive increased demand for battery storage from utilities, commercial and industrial (C&I) consumers, and residential consumers, leading to continued growth in the battery market in coming years.
[/accordion]
[/accordions]
What's the Opportunity for Consumers and Co-ops?
[section]
[section-item]
[row]
[column 12][/column]
[/row]
[row]
[column 12]
Batteries are often paired with renewable energy projects to store excess energy and deploy energy during periods of higher demand.
Batteries have a range of benefits, including frequency regulation, peak shaving, and back-up power.
Using batteries on the grid can help to reduce electricity costs for consumer-members.
[/column]
[/row]
[row]
[column 12][/column]
[/row]
[row]
[column 6]

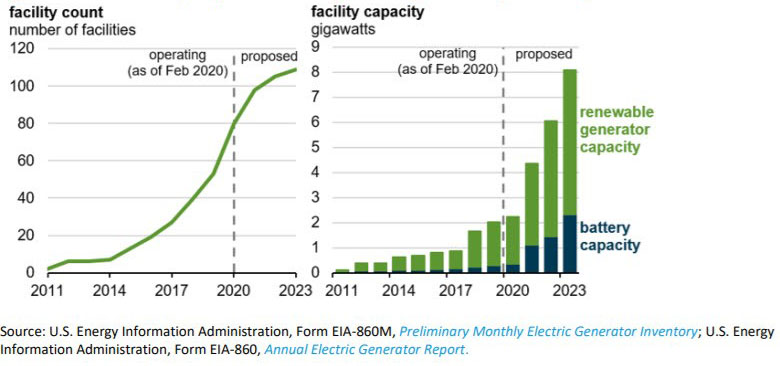

Count and capacity of renewable plus storage facilities (2011-2023)
[/column]
[column 6]

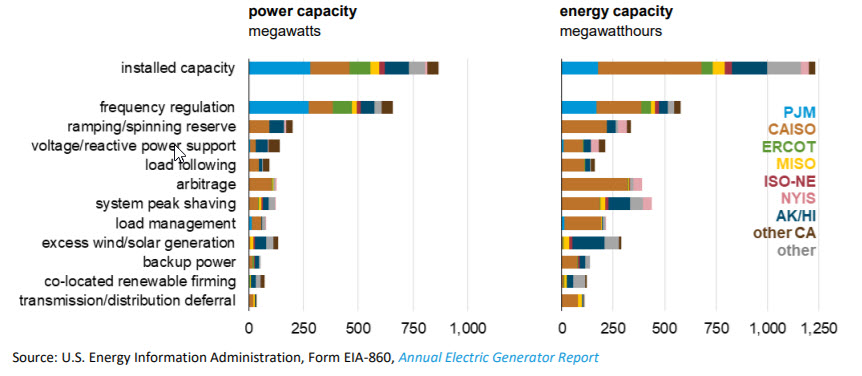

Applications served by large-scale battery storage (2018)
[/column]
[/row]
[/section-item]
[/section]
[accordions]
[accordion title="More%20Detail"]
Battery energy storage projects provide utilities a unique opportunity to take advantage of a variety of benefits. The most common application of battery storage is for frequency regulation, which helps to balance any momentary differences between supply and demand at any time. Batteries are also becoming increasingly common in pairing with renewable energy projects. To maximize the benefits of renewable energy projects, batteries can store excess energy to be deployed during times of higher demand when prices are higher. This helps to reduce costs for the co-op and for consumers. Many electric cooperatives have already deployed battery storage projects. Interest among electric co-ops in deploying battery energy storage is growing, and will likely accelerate as more experience is gained, costs continue to fall, and technological advances improve the performance of batteries. As co-ops look towards resiliency, batteries will play a critical role in providing backup power to the grid.
[/accordion]
[/accordions]
What is NRECA Doing?
NRECA closely follows innovations in the battery energy storage industry, tracks cooperative battery storage projects, develops relevant battery storage resources for cooperatives, and leads research projects to deploy of battery energy storage at cooperatives.
